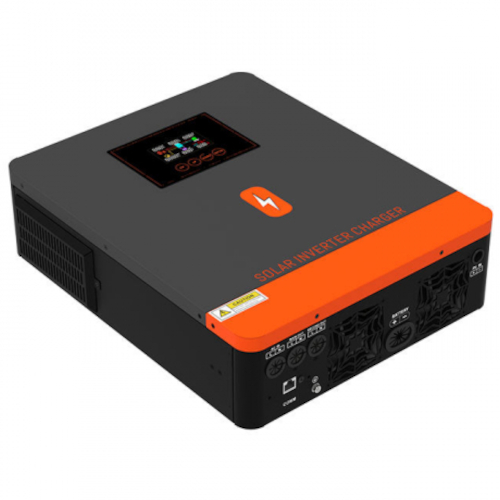

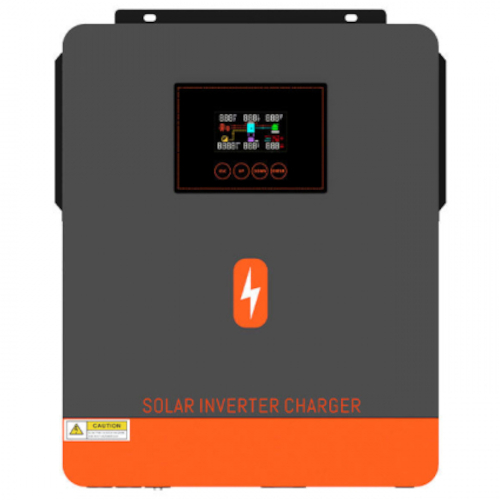

PowMr 6.2KW RGB Hybrid Inverter Solar Charger
ID:
139893
Status: In Stock
-8%
)
)
Price in Bangladesh
The lowest price of Powmr 6.2kw rgb hybrid inverter solar charger in Bangladesh is Tk 62,000 only. Buy from Dhaka at low price in Bdstall. There is currently 1 seller.
01771115656
3 days ago
2 years parts
2 years service
NewFull Specification
| Item | Solar IPS |
|---|
- Technical Information
- Nominal
- Input Voltage: 230Vac
- Input Frequency: 50Hz / 60Hz (Auto detection)
- Voltage
- High
- Loss Voltage: 280Vac±7V
- Loss Return Voltage: 270Vac±7V
- Low
- Loss Voltage: 170Vac±7V (UPS), 90Vac±7V
- Loss Return Voltage: 180Vac±7V (UPS), 100Vac±7V
- High
- Frequency
- High
- Loss Frequency: 65±1Hz
- Loss Return Frequency: 63±1Hz
- Low
- Loss Frequency: 40±1Hz
- Loss Return Frequency: 42±1Hz
- High
- Input Voltage Waveform: Sinusoidal (utility or generator)
- Max AC Input Voltage: 300Vac
- Output Short Circuit Protection: Circuit breaker
- Efficiency (Line Mode): >95%
- Transfer Time: 10ms typical (UPS), 20ms typical (Appliances)
- Output Power Derating
- When AC input voltage drops to 170V, the output power will be derated
- Nominal
- Inverter Mode Specifications
- Output Voltage Waveform: Pure Sine Wave
- Output Voltage Regulation: 230Vac±5%
- Output Frequency: 50Hz
- Peak Efficiency: 93%
- Overload Protection
- 3s x 2150% load
- 5S x 101%~150% load
- Surge Capacity: 12.4 KW for 5 seconds
- Nominal DC Input Voltage: 48Vdc
- Cold Start Voltage: 46.0Vdc
- Low DC Warning Voltage
- Load < 50D xss=removed xss=removed xss=removed Vjie=230Vac)>0.99
- Maximum Conversion Efficiency (DC/AC): 97%
- General Specifications
- Operating Temperature Range: -10°C to 50°C
- Storage temperature: -15°C~ 60°C
- Humidity: 5% to 95% relative humidity (Non-condensing)
- Safety Certification: CE
- Compatible Battery
- Lifepo4 batteries, lithium batteries, flooded batteries, gel batteries, lead-acid batteries, AGM batteries, user mode
- Structure
- Dimension: 358 x 442 x 116mm
- Net Weight: 8.9 Kg
Description
POW-HVM6.2M-48V-N is a powerful hybrid inverter solar charger that has a 230Vac nominal voltage. It generates 6.2KW of power with 12.4 KW for 5 seconds of surge capacity. It features a 20ms typical transfer time and supports overload protection. Its inverter mode supports pure sine wave technology with 93 percent of peak efficiency.
