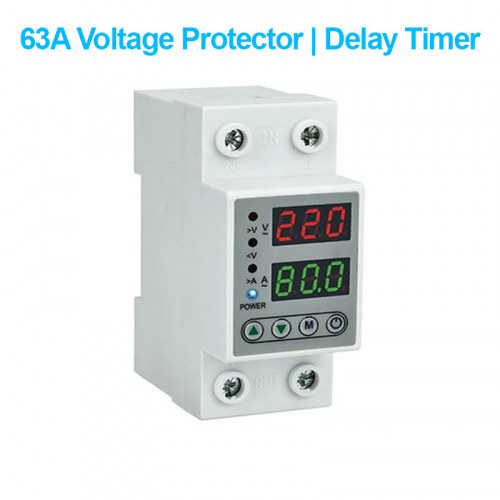

Intelligent Single Phase Voltage Protector 63Ah
ID:
144984
Status: In Stock
-58%
)
)
Price in Bangladesh
The lowest price of Intelligent single phase voltage protector 63ah in Bangladesh is Tk 700 only. Buy from Dhaka at low price in Bdstall. There is currently 1 seller.
01946736863
2 days ago
NewFull Specification
| Item | Electrical Switch |
|---|
- Specs

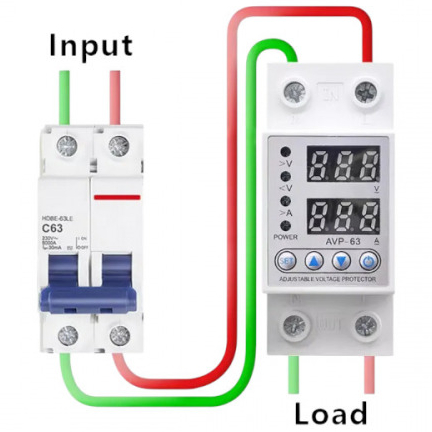

- Supply Terminals: N-L
- Rated Supply Voltage: AC: 320V
- Rated Frequency: 50Hz
- Voltage Setting Range
- AC: 80-300V (U setting operating range)
- Overvoltage Trip Delay: 0.5s (no delay)
- Voltage Accuracy: <1>
- Max Operating Phase Voltage: 350V
- Max Operating Current: 63A
- Altitude Limit: ≤2000m
- Ambient Temperature: -25°C to +50°C
- Humidity Tolerance: ≤50% at 40°C (no condensation)
- Storage Temperature: -25°C to +55°C
- Dimensions: 512 x 960mm
- Setup Menu (Programmable Settings)
- Parameter Default Adjustable Range Details
- P-1: Power-on time: 5s 1-99s
- P-2: Recovery time: 30s 1-99s
- P-3: Overvoltage 300V (DC), 80-300V (AC)
- P-4: Overvoltage recovery 255V 128-285V
- P-5: Undervoltage 80V 80-210V
- P-6: Undervoltage recovery 115V 80-210V
- P-7: Voltage line time 0.5s 0.1-10s
- P-8: Voltage correction real-time -10% to +10%
- P-9: Power current 63A 14-63A
- P-10: Current trip time 0.1s 0.1-10s
- P-11: Current counter OFF 0-20 times
- P-12: Current adjustment real-time -10% to +10%
- P-13: Frequency adjustment real-time ±2.5%
- P-14: Fast power-down protection ON/OFF
- P-15: Automatic reset ON/OFF
- P-16: Energy-saving mode
- P-17: Lock 000-999 password-protected settings
Description
This Intelligent Single Phase voltage protector 63Ah has N-L supply terminals, a rated supply voltage of AC 320V, and a rated frequency of 50Hz. It has a maximum operating phase voltage of 350V and a maximum operating current of 63A. It has adjustable parameters like power-on time, recovery time, overvoltage, undervoltage, voltage line time, voltage correction, power current, current trip time, and frequency adjustment.
