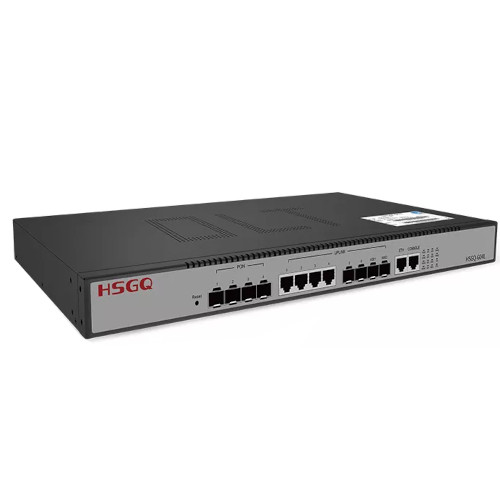

HSGQ-E04 Epon 4-Port OLT with Dual Power Supply
ID:
60772
Status: In Stock
)
)
Price in Bangladesh
The lowest price of Hsgq-e04 epon 4-port olt with dual power supply in Bangladesh is Tk 38,500 only. Buy from Dhaka at low price in Bdstall. There is currently 1 seller.
01906395886
23 days ago
1 year parts
1 year service
NewFull Specification
| Item | Media Converter |
|---|---|
| Converter Type | OLT |
- Technical Information
- Switching Capacity: 67 Gbps
- Service Port
- 4 x PON port
- 4 x GE RJ45
- 2 x GE SFP port
- 2 x 10GE SFP+ port
- Transmission Distance
- Max Transmission Distance: 20km
- Max splitting Ratio: 1:128
- Redundancy Design
- Dual power supply
- Support double AC input
- Double DC input and AC+DC input
- PON Features
- DBA algorithm, and the particle is for 64Kbit/s
- Standard OMCl management function
- ONU batch software upgrade
- PON port optical parameter detection
- Auto registration ONU bound with the default profile
- Service
- IPv4
- DHCP Relay
- DHCP Server
- DHCP Snooping
- Static Routing
- Multicast
- IGMPv1/v2/v3 Snooping
- IGMP Fast leave
- IGMP Proxy
- IPv4
- Maintenance
- Network Maintenance
- Powerful WEB GUI
- Port real-time, utilization, and transmit/receive statistics
- Data Logging and RFC 3164 BSD syslog protocol, Ping
- Device Management
- Console port, Telnet, SSH management
- Out-of-band management
- SNMPv1/v2
- RMON(Remote Monitoring)1,2,3,9 groups MIB
- SNTP
- Fan management
- Network Maintenance
- Reliability
- Loop Protection: Loopback-detection
- Link Protection
- RSTP/MSTP(recover-time <1s>
- Link aggregation (recover-time <10ms>
- Device Protection: 1+1 power hot backup
- Power
- AC: Input 10- 240V
- Frequency: 50/60Hz
- Power Consumption: 50W
- Temperature
- Working temperature: -10°C～55°C
- Storage temperature: -40 °C~70 °C
- Relative humidity: 10%～90%, non-condensing
- Physical
- Dimension: 440 x 44mm x 380mm
- Weight: 5 kg
Description
This HSGQ-E04 is a 4-Port OLT that includes a dual power supply. It comes with 67 Gbps switch capacity and supports double AC input. It includes features of loopback detection, 1+1 power hot backup, DBA algorithm, and 50W power consumption. Also, due to a 20km maximum transmission distance range, it can cover a wider area.
