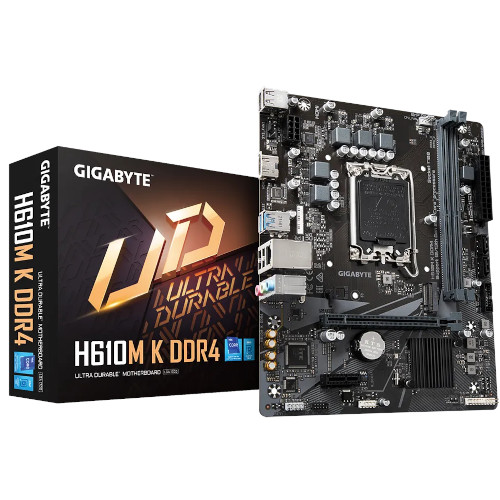

Gigabyte H610M-K DDR4 14th Gen Micro ATX Motherboard
ID:
138145
Status: In Stock
)
Price in Bangladesh
The lowest price of Gigabyte h610m-k ddr4 14th gen micro atx motherboard in Bangladesh is Tk 9,950 only. Buy from Dhaka at low price in Bdstall. There is currently 1 seller.
01914738856
3 days ago
3 years parts
3 years service
NewFull Specification
| Item | Motherboard |
|---|---|
| Brand | Gigabyte |
| Motherboard Type | Standard |
| Chipset | Intel H610 Express |
| Supported Processors | Intel Core, Pentium Gold, and Celeron 14th, 13th, and 12th Generation Processor |
| Front Side Bus | Intel H610 Express Chipset |
| Max Memory | Up to 64GB (32 GB single DIMM capacity) |
| Onboard Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Onboard LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
- Socket: LGA1700
- Storage
- 2 x DDR4 DIMM sockets
- Dual-channel memory architecture
- Supports memory modules
- Extreme Memory Profile (XMP)
- ECC Un-buffered DIMM 1Rx8/2Rx8
- Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- DDR4 3200/3000/2933/2666/2400/2133 MT/s
- Onboard Graphics
- Type: Integrated Intel HD Graphics
- Supports
- 1 x HDMI port
- HDMI 2.1 version and HDCP 2.3
- HDMI 2.1 TMDS compatible ports
- Maximum resolution: 4096 x 2160 at 60 Hz
- Expansion Slots
- CPU
- 1 x PCI Express x16 slot
- PCIe 4.0 and running at x16
- Chipset
- 1 x PCI Express x1 slot
- PCIe 3.0 and running at x1
- CPU
- Storage Interface
- Chipset
- 1 x M.2 connector
- Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support
- 2 x SATA 6Gb/s connectors
- 1 x M.2 connector
- USB
- Chipset
- 4 x USB 3.2 Gen 1 ports
- 2 x ports on the back panel
- 2 x ports available through the internal USB header
- 6 x USB 2.0/1.1 ports
- 4 x ports on the back panel
- 2 x ports available through the internal USB header
- Internal I / O Connector
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 2 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header
- 1 x Clear CMOS jumper
- Back Panel Connector
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- I / O Controller
- iTE I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
- Bios
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Supports
- APP Center
- Q-Flash
- Xpress Install
- Supports
- Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
- Operating System
- Support
- Windows 11 64-bit
- Windows 10 64-bit
- Support
- Form Factor
- Micro ATX Form Factor: 22.6cm x 18.5cm
Description
This Gigabyte H610M-K is a Micro ATX Motherboard that supports Intel Core, Pentium Gold, and Celeron 14th, 13th, and 12th Generation processors. It has an Intel H610 Express chipset that provides good performance while working. Also, it includes Up to 64GB DDR4 memory, Realtek Audio CODEC, Realtek GbE LAN chip, and Integrated HD graphics processor.
