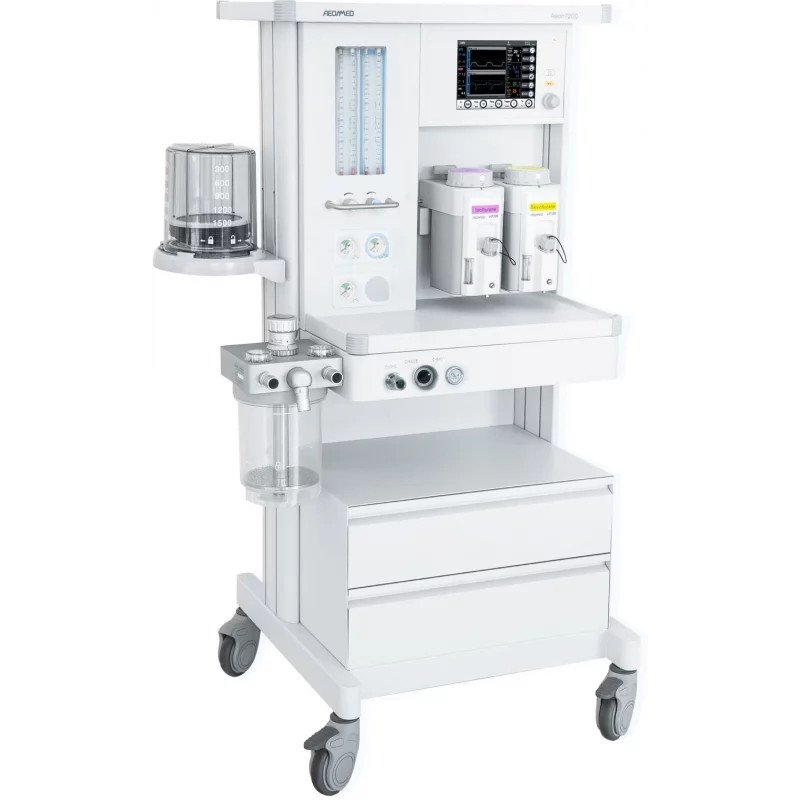

Aeonmed Aeon7200A Anesthesia Machine with Ventilator
ID:
122942
Status: In Stock
Price in Bangladesh
The lowest price of Aeonmed aeon7200a anesthesia machine with ventilator in Bangladesh is Tk 890,000 only. Buy Aeonmed Aeon7200A at low price in Bdstall. There is currently 2 sellers.
Purana Paltan
(Dhaka)
01841507145
৳ 1,070,000
7 days ago
1 year parts
2 years service
New
Full Specification
| Item | Anesthesia Machine |
|---|---|
| Model | ✅ Aeonmed Aeon7200A |
- Anesthesia Machine
- Smoothing operation experience
- 8.4' LCD color touchscreen display provides easier operation
- Two vaporizers with interlock to ensure the safety
- Double-tube mechanical flowmeter
- APL valve with fast-release function
- One-key switch from manual to mechanical ventilation
- Reliable breathing system
- Integrated sensors, non-consumable design
- Large capacity CO2 absorber
- Effectively reduce the capacity of the system
- Low resistance inspiration and expiration valves
- Smoothing operation experience
- Power
- Mains: AC 100~240V, 50/60Hz
- Battery: DC 24V, minimum 120min
- Mains outlet: 3
- Pneumatic Features
- Gas supply: 0.28-0.6MPa
- Flowmeters: O2: 0~1L/min; 1~10L/min
- N2O: 0~1 L/min; 1~10L/min
- N2O: 0~1 L/min; 1~12L/min
- Air: 0~1 L/min; 1~15L/min
- Gas system: O2 supply failure alarm
- O2 supply failure protection
- O2 flush: 25~75L/min
- Safety valve: ≤10kPa
- Operating mode: Man. / Vent.
- Cylinder yokes: Optional
- Working mode: Closed, Semi-closed, Semi-open
- Driven mode: Pneumatically driven and electronically controlled
- Ventilator
- Patient type: Adult, pediatric
- Ventilation modes(basic config): IPPV, PCV, SIMV-VC, Manual, PS/CPAP (with apnea backup), Standby
- Ventilation modes(full config): IPPV, PCV, SIMV-VC, SIMV-PC, Manual, PS/CPAP (with apnea backup), Standby
- Setting: Navigator knob & touchscreen
- Tidal volume: 20~1500ml
- Ventilation frequency: 2~100bpm
- I: E ratio: 4:1~1:8
- Electronic PEEP: OFF, 3~30cmH2O
- Inspiratory plateau: OFF, 5~60%
- Flow trigger: 1~15L/min
- Pressure range: 5~70cmH2O
- Pressure support: 3~50cmH2O
- Ventilation Monitoring: Pressure: Ppeak, Pplat, Pmean, PEEP
- Volumes: MV, Vt Respiratory frequency Compliance, etc.
- Gas Monitoring: O2, CO2, Agent (All optional)
- Graph display(basic config): P-t, F-t, V-t waveforms
- Graph display(full config): P-t, F-t, V-t waveforms, P-V and F-V loops
- Alarm
- High/Low Airway Pressure
- High/Low Minute Volume
- High/Low FiO2
- Vaporizer
- Support 2 vaporizers (Selectatec with interlock)
- Optional additional 1 vaporizer holder
- Agent type: Halothane, Enflurane, Isoflurane, Sevoflurane
- Filling type: Pour-fill, Key-fill, Quik-fil
Description
Aeonmed Aeon 7200A Anesthesia Machine is used in ICU for adult, pediatric and neonatal patients. It includes the standard ventilation mode of IIPV, manual mode. It is connected to a ventilator that delivers a preset tidal volume with low pressure using a decelerating flow.
